12V 12-Way Fuse Box with LED Warning Indicator for Car Marine Truck
✧ Product Details

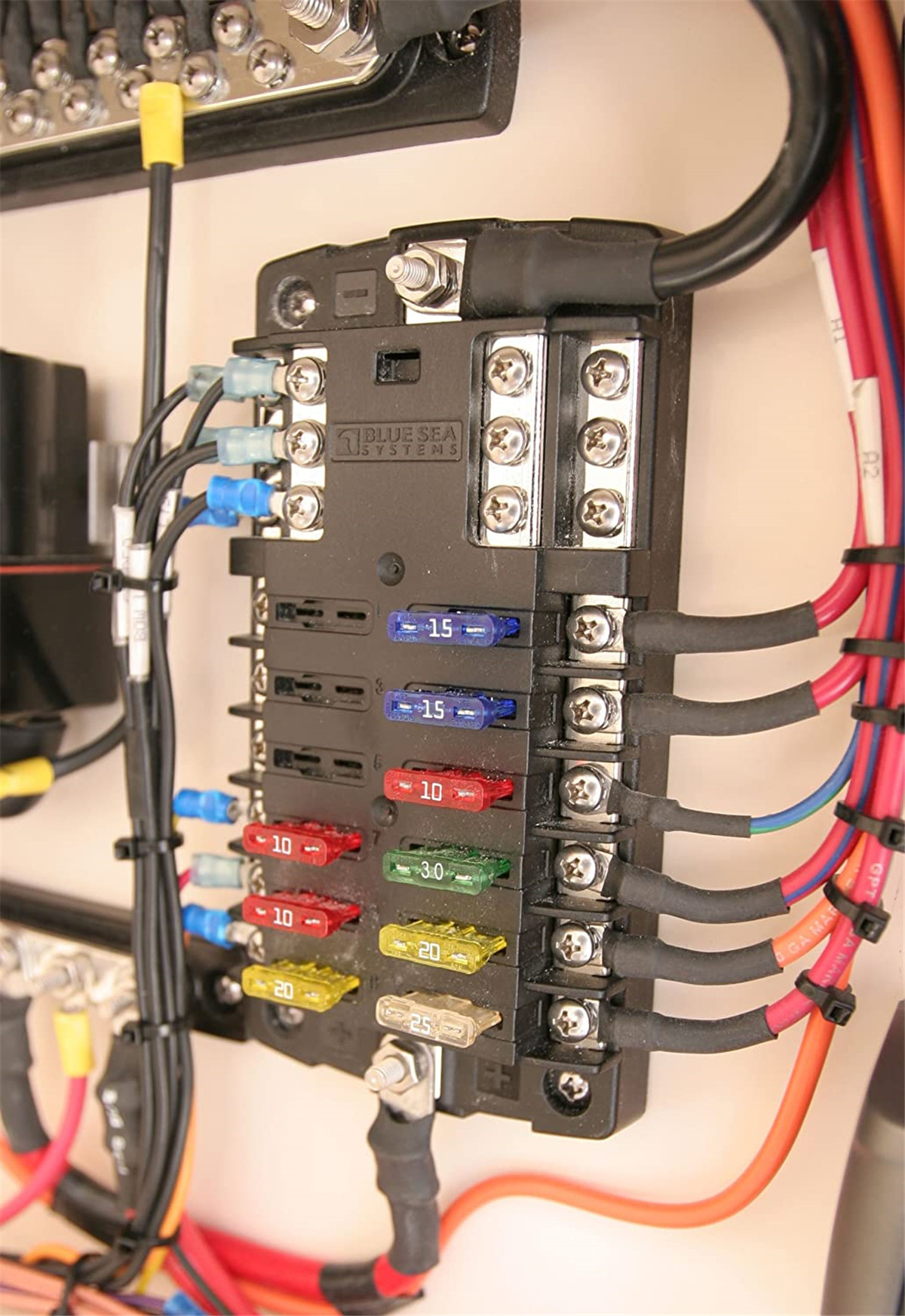

Application：The ST Blade Fuse Block can offer a space-saving and cost-effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12-position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.

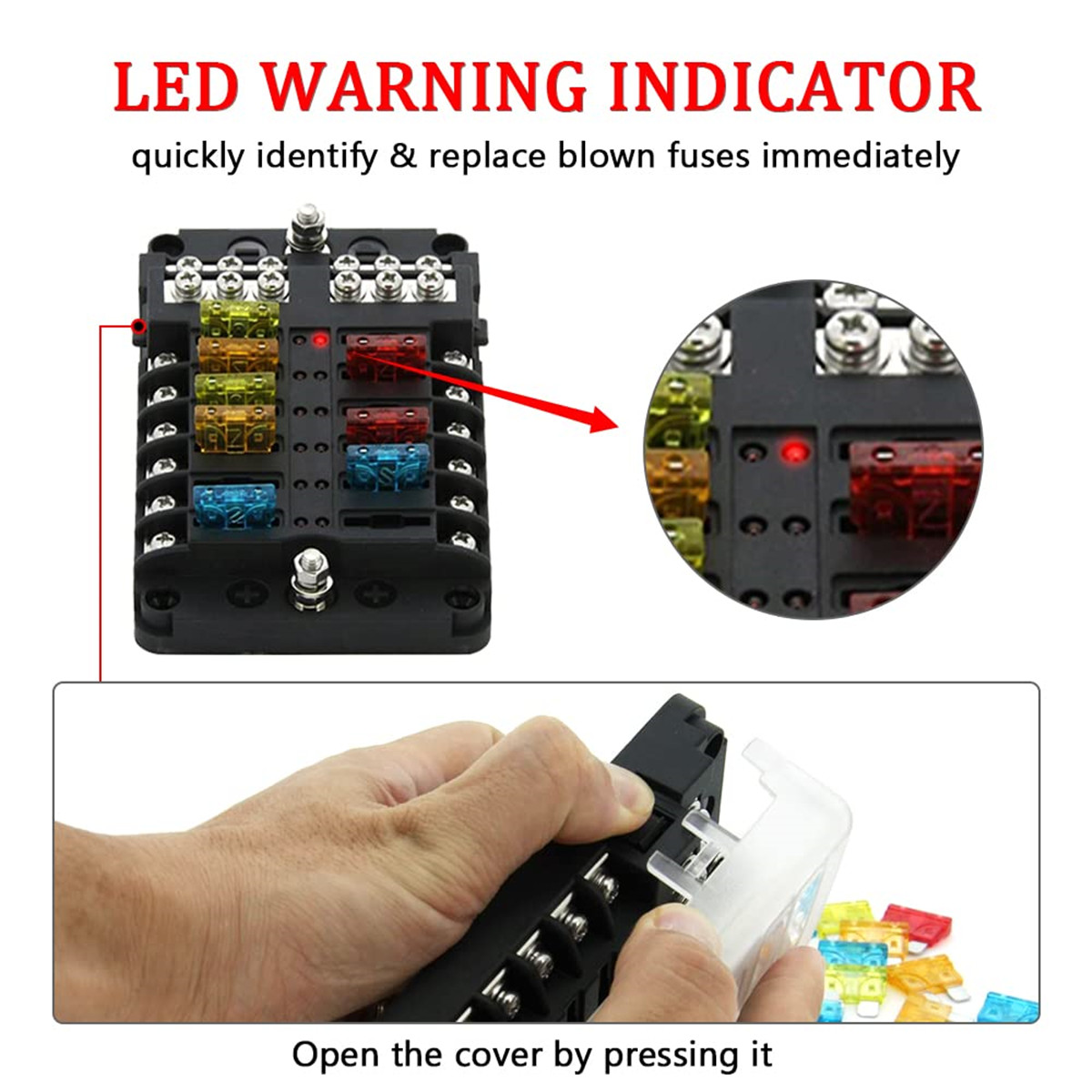

Application：LED Warning: There are red led lights in this 12 way fuse box. When the current or voltage exceeds the rated range, the fuse will be automatically blown. And the leds beside each load will indicate if a circuit has shorted or has blown.Then you will know it’s time to change it. Easy to identify the issue location.

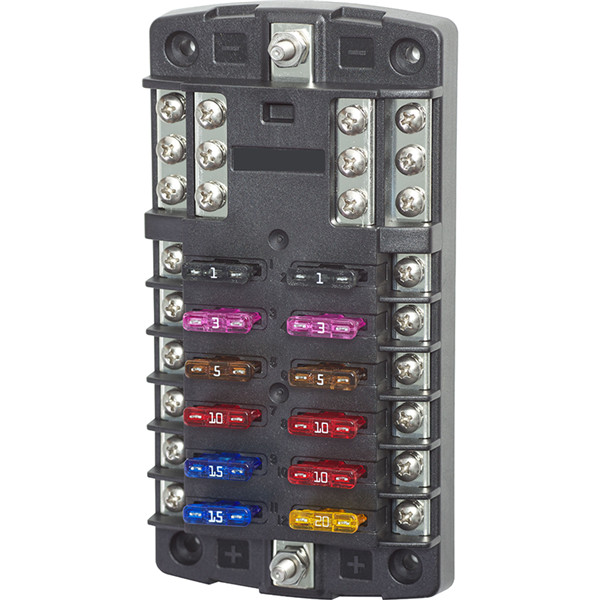

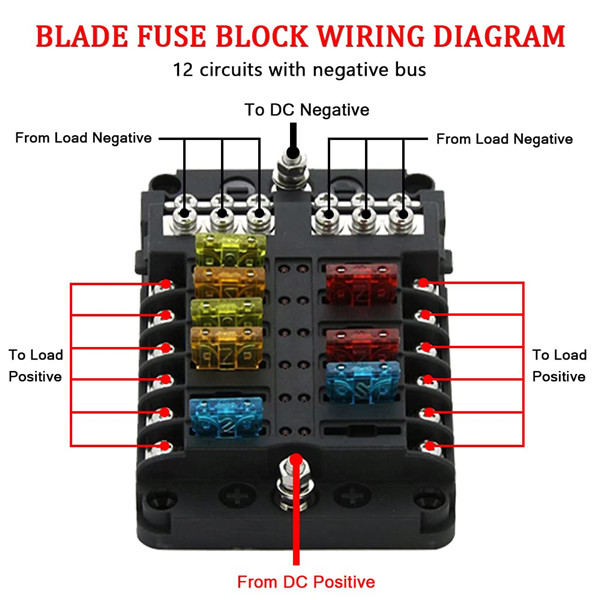

Application：Well Organized: This new type of Apeixoto 12V 12 way fuse holder has 12 dedicated fuse and 12 ground locations which will keep your wires well organized and accessible. The wring won’t be a task using this type of 12 way fuse box.
Application：Working Specifications: The input rated voltage of the fuse box is 32V and the input rated current is 100A. Each circuit outputs a maximum current of 30A. It is widely used in 12V/24V car, autos, buses, tankers, ship, marine, truck, vehicle, SUV, yacht, RV, boats etc.

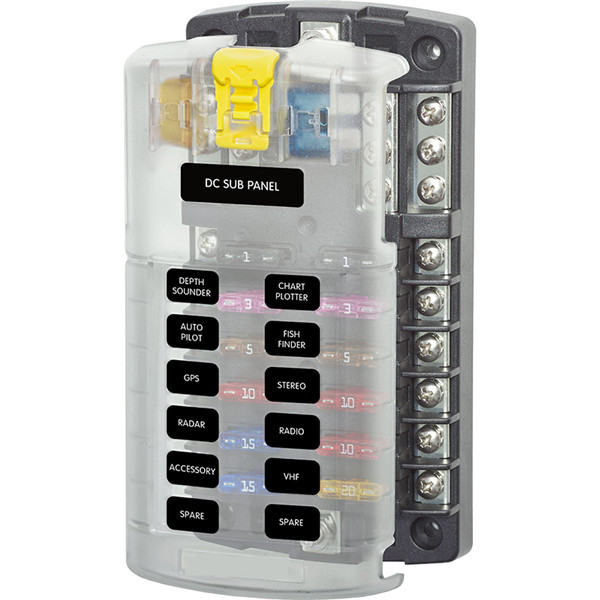

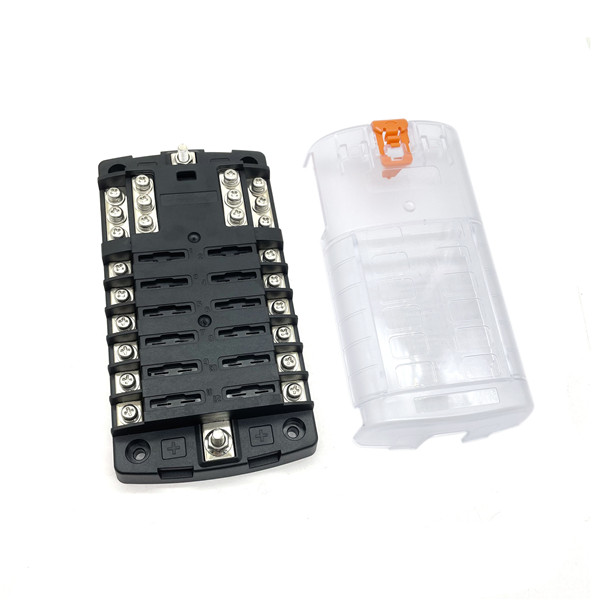

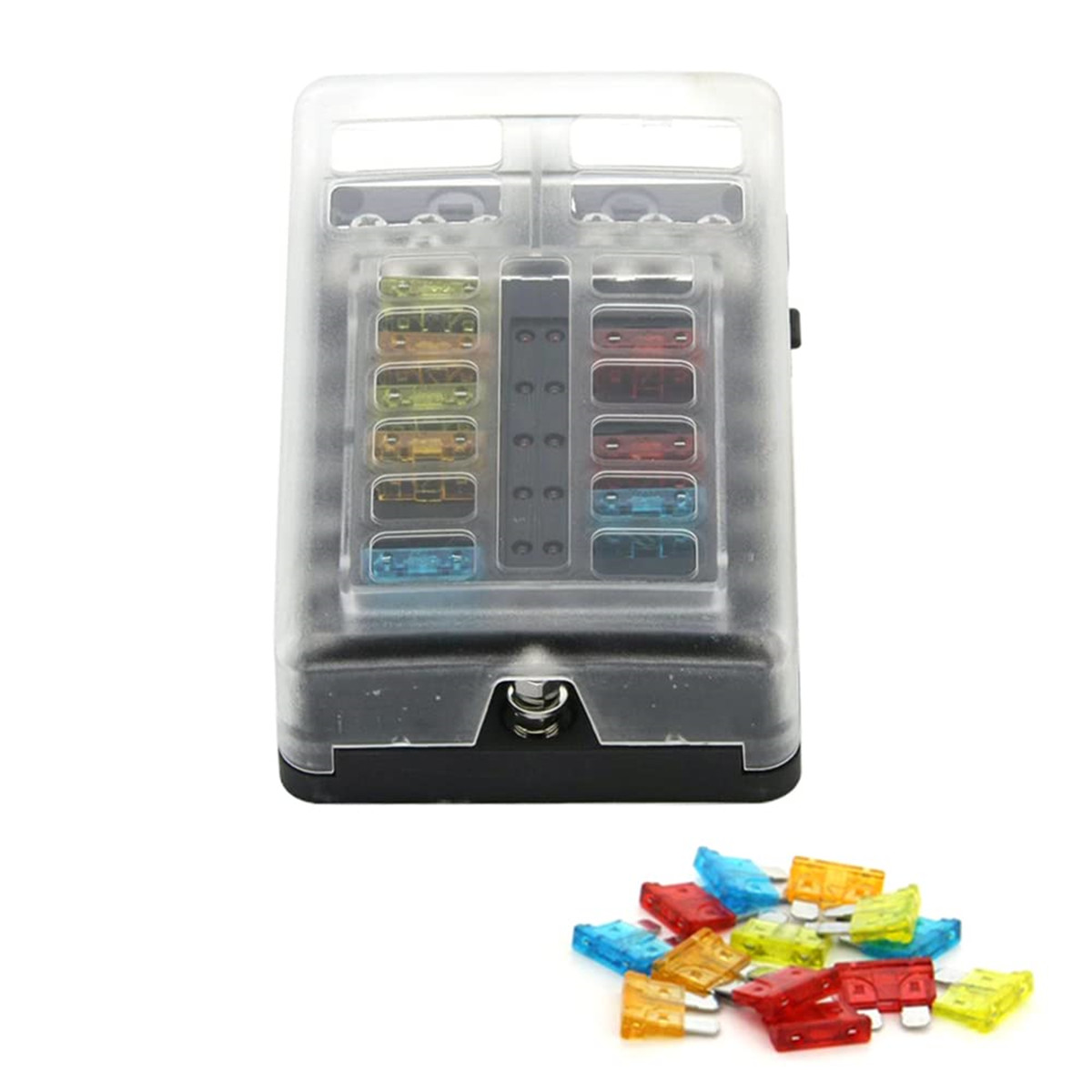

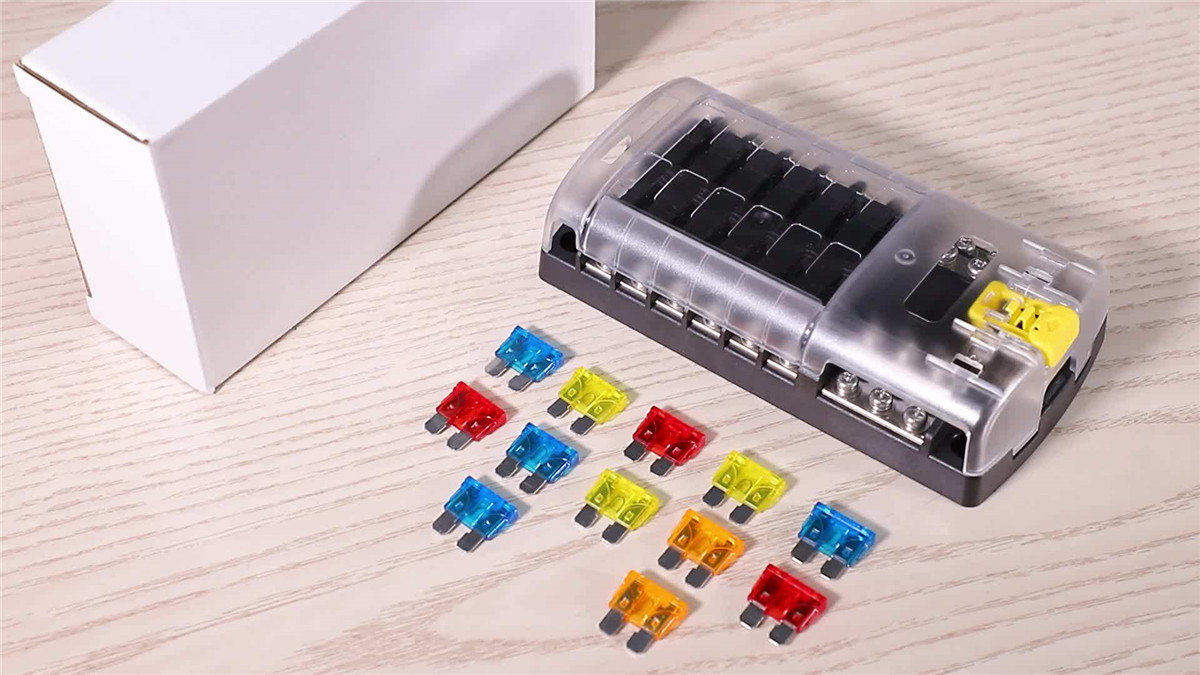

Application：Material: The 12 way fuse box is constructed with PBT material which is totally rust and corrosion resistant. And it is also totally insulated, heat and flame resistant. And there is also a clear cover for the fuse box to protect the dust. There are clips on it. It’s quite easy to put it on and take it off. All the circuits and bus bars are made of nickel plated copper. They are all corrosion-resistant and highly conductive.
✧ Specification

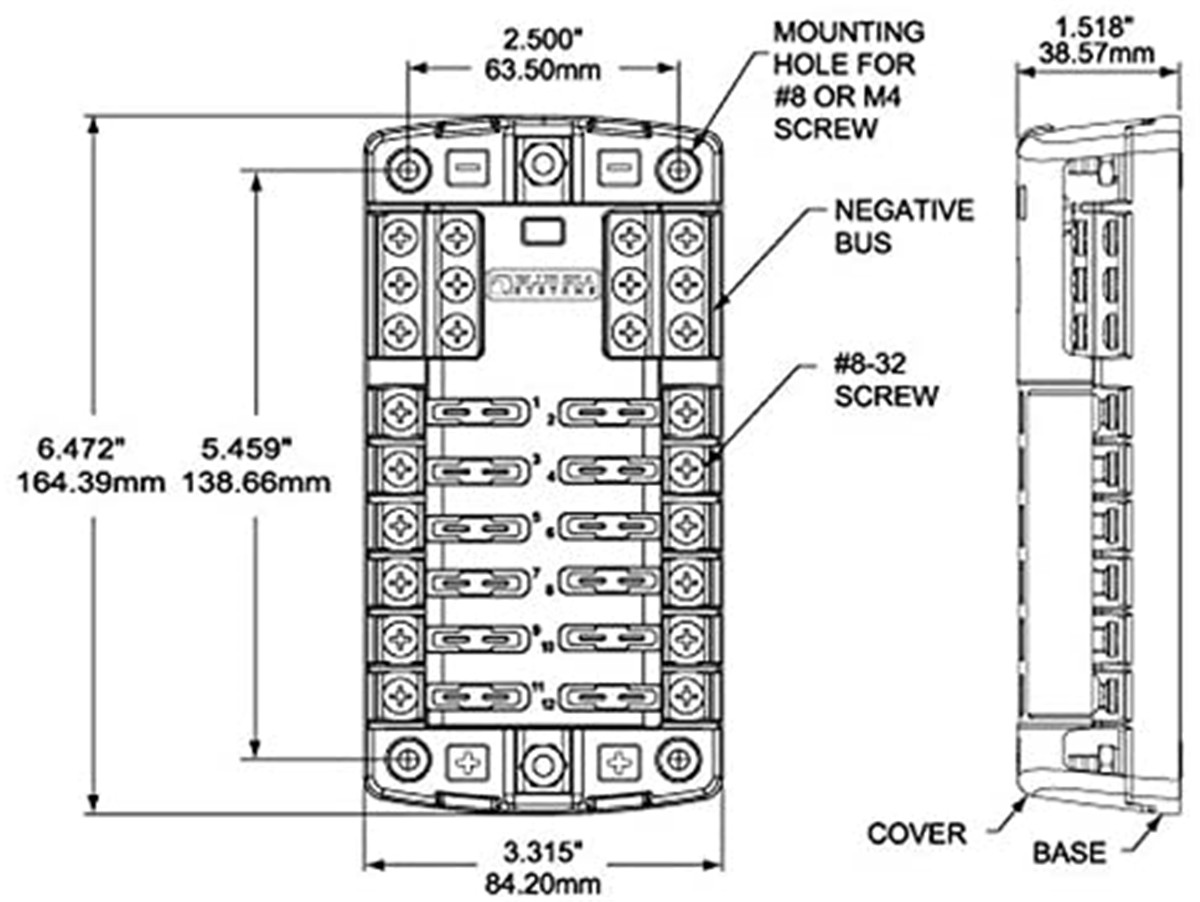

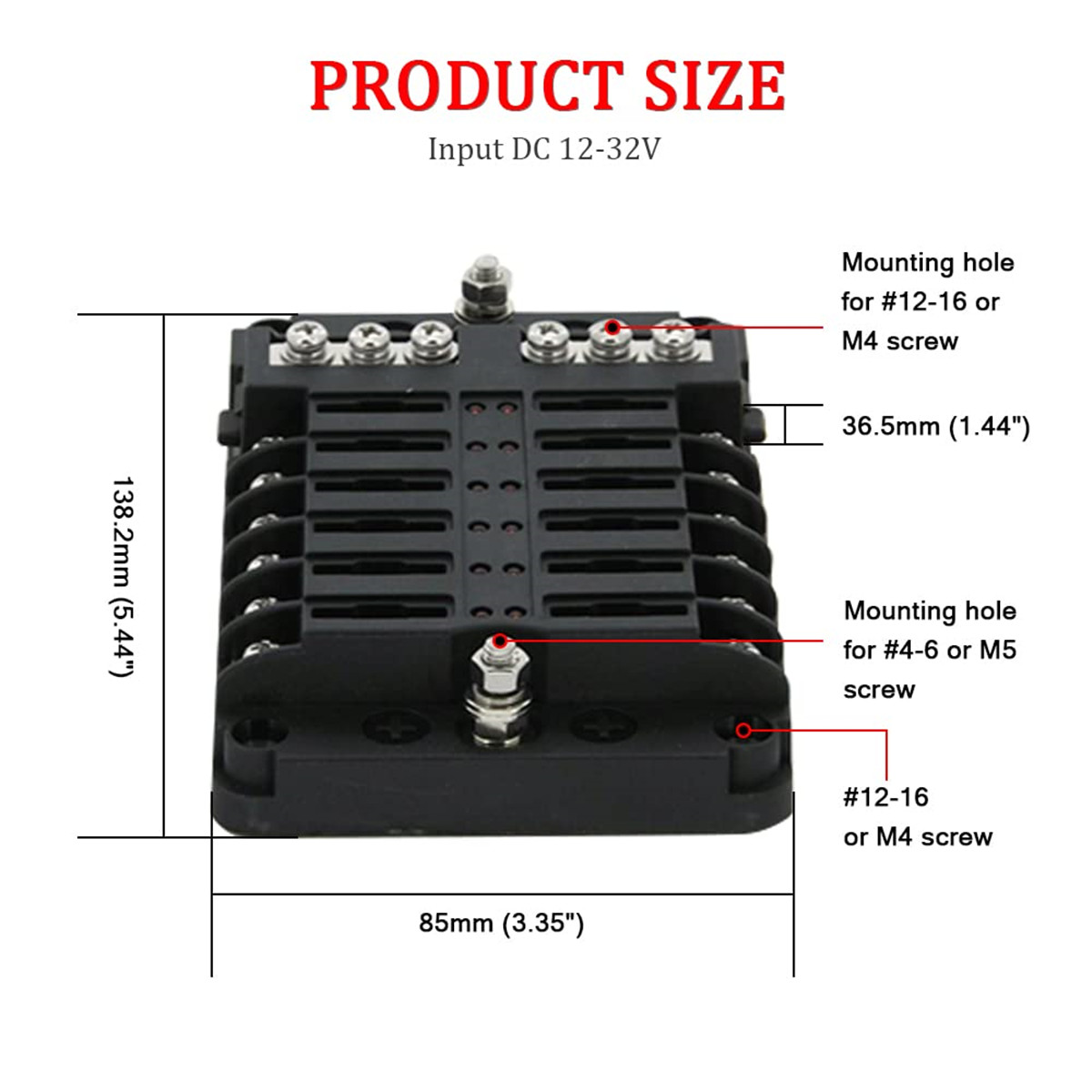

| Circuits | 12 |
| Maximum Amperage | 100A per block / 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N·m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
